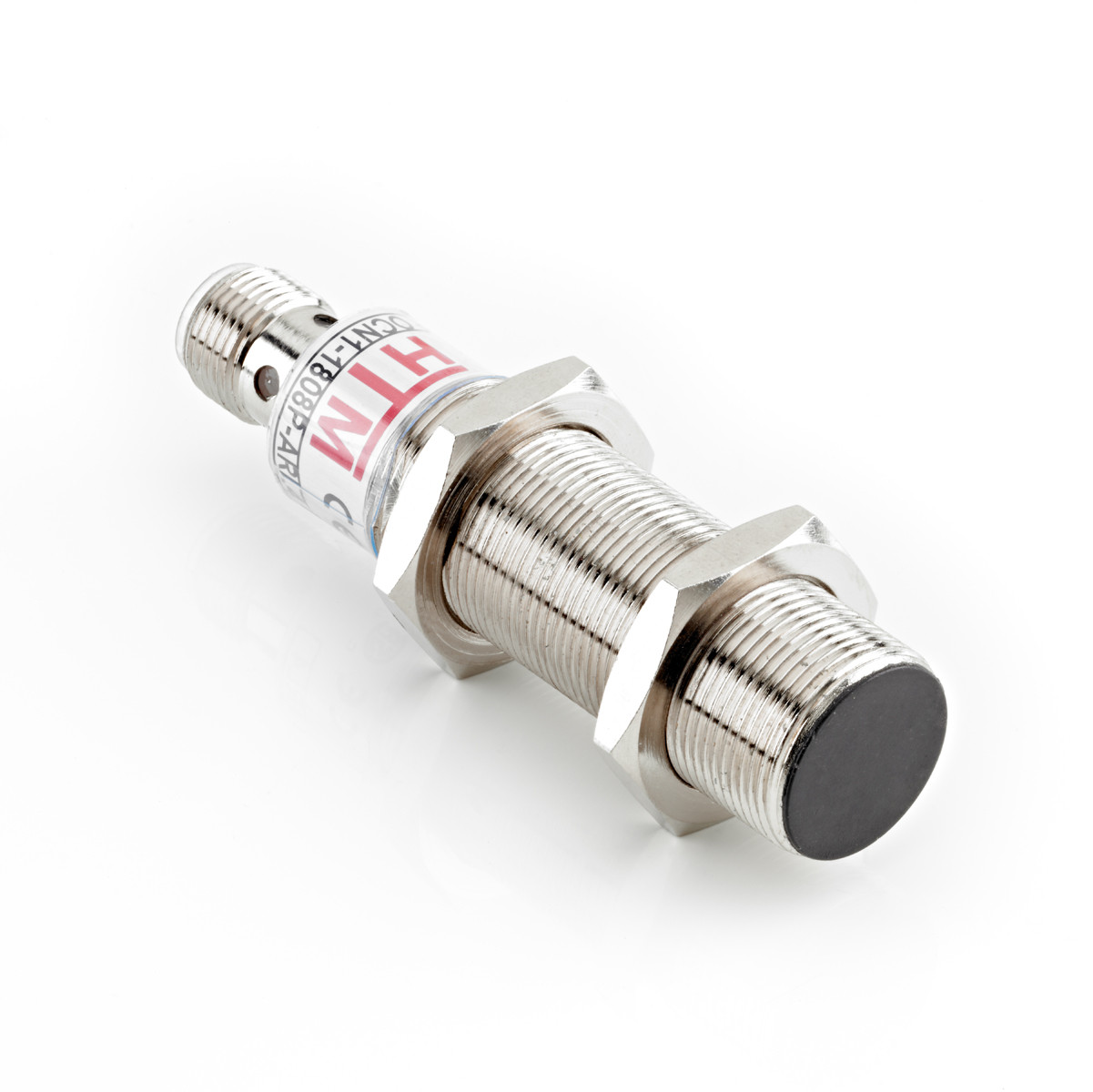

  • OCN1-1808A-BUL3

    • OCN1-1808A-BUL3

    $69.68
    (No reviews yet) Write a Review
    SKU:
    OCN1-1808A-BUL3
    For PDF Spec:
    For STEP File:
    Type:
    Extended Range General Purpose Sensors
    Shape:
    Cylindrical
    Diameter:
    M18
    Sensing Range:
    8 mm Range
    Mounting Style:
    Shielded
    Output Type:
    AC
    Output Function:
    Normally Closed
    Connection:
    3 Pin Quick Disconnect
    Connector:
    1/2-20UNF Connector
    Body Length:
    75 mm
    Housing Material:
    Chrome Plated Brass
    Sensing Face Material:
    PBT Plastic
    IP Rating:
    IP67
    Operating Temperature:
    -25 C - +70 C
    Operating Voltage:
    20-250 V AC
    Current Consumption:
    <1.8 mA
    Leakage Current:
    <1.8 mA
    Max Current:
    400 mA
    Overload Trip Point:
    -
    Surge Current:
    5 A (20 ms)
    Short Circuit Protected:
    NO
    Reverse Polarity Protected:
    NO
    Switching Frequency:
    <25 Hz
    Response Time:
    10 ms/10 ms
    EMC Rating:
    RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating:
    IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune:
    No
    Weld Spatter Resistant:
    No
    Description:
    M18, 8 mm Range, AC, Normally Closed
    Matching Cable:
    U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector)
    Matching Bracket:
    HRAB-18 (Basic) / QT-18 (Quick Release)
    Adding to cart… category.add_cart_announcement

    Product Description

    M18, Extended Range General Purpose Sensors, Shielded, 8 mm Range, AC, Normally Closed, 1/2-20UNF Connector

    Product Videos

    Custom Field

    For PDF Spec
    For STEP File
    Type Extended Range General Purpose Sensors
    Shape Cylindrical
    Diameter M18
    Sensing Range 8 mm Range
    Mounting Style Shielded
    Output Type AC
    Output Function Normally Closed
    Connection 3 Pin Quick Disconnect
    Connector 1/2-20UNF Connector
    Body Length 75 mm
    Housing Material Chrome Plated Brass
    Sensing Face Material PBT Plastic
    IP Rating IP67
    Operating Temperature -25 C - +70 C
    Operating Voltage 20-250 V AC
    Current Consumption <1.8 mA
    Leakage Current <1.8 mA
    Max Current 400 mA
    Overload Trip Point -
    Surge Current 5 A (20 ms)
    Short Circuit Protected NO
    Reverse Polarity Protected NO
    Switching Frequency <25 Hz
    Response Time 10 ms/10 ms
    EMC Rating RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune No
    Weld Spatter Resistant No
    Description M18, 8 mm Range, AC, Normally Closed
    Matching Cable U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector)
    Matching Bracket HRAB-18 (Basic) / QT-18 (Quick Release)
