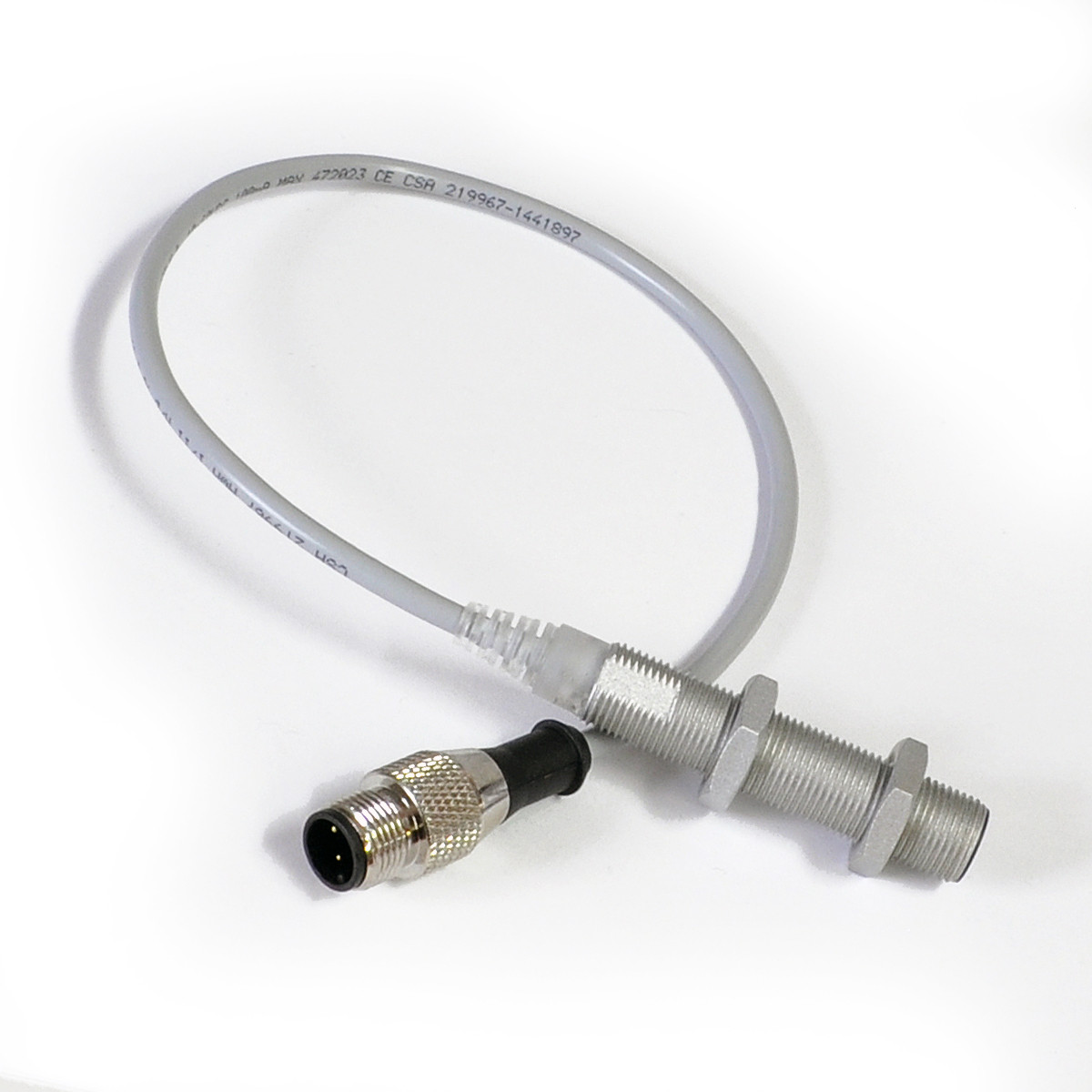

  • OCN1-1204C-A2U0.3/P12/S010-SFP

    • OCN1-1204C-A2U0.3/P12/S010-SFP

    $56.16
    (No reviews yet) Write a Review
    SKU:
    OCN1-1204C-A2U0.3/P12/S010-SFP
    For PDF Spec:
    For STEP File:
    Type:
    Extended Range Proximity Sensor
    Shape:
    Cylindrical
    Diameter:
    M12
    Sensing Range:
    4 mm Range
    Mounting Style:
    Shielded
    Output Type:
    DC 2-wire
    Output Function:
    Normally Open
    Connection:
    Pre-Leaded 2 Wire
    Connector:
    0.3 m Cable with M12 Pigtail Connector
    Body Length:
    72 mm
    Housing Material:
    PTFE Coated Chrome Plated Brass
    Sensing Face Material:
    PTFE
    IP Rating:
    IP67
    Operating Temperature:
    -25 C - +70 C
    Operating Voltage:
    10-60 V DC
    Current Consumption:
    -
    Leakage Current:
    <0.8 mA
    Max Current:
    100 mA
    Overload Trip Point:
    >120 mA
    Surge Current:
    -
    Short Circuit Protected:
    Yes
    Reverse Polarity Protected:
    NO
    Switching Frequency:
    1 KHz
    Response Time:
    0.2 ms/0.2 ms
    EMC Rating:
    RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating:
    IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune:
    No
    Weld Spatter Resistant:
    Yes
    Description:
    M12, 4 mm Range, DC 2-Wire, Normally Open
    Matching Cable:
    R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
    Matching Bracket:
    HRAB-12 (Basic) / QT-12 (Quick Release)
    Adding to cart… category.add_cart_announcement

    Product Description

    M12, Extended Range Proximity Sensor, Shielded, 4 mm Range, DC 2-Wire, Normally Open, 0.3 m Cable, M12 Pigtail Connector, Pin out pins 1 and 4, Special Weld Durable Face.

    Product Videos

    Custom Field

    For PDF Spec
    For STEP File
    Type Extended Range Proximity Sensor
    Shape Cylindrical
    Diameter M12
    Sensing Range 4 mm Range
    Mounting Style Shielded
    Output Type DC 2-wire
    Output Function Normally Open
    Connection Pre-Leaded 2 Wire
    Connector 0.3 m Cable with M12 Pigtail Connector
    Body Length 72 mm
    Housing Material PTFE Coated Chrome Plated Brass
    Sensing Face Material PTFE
    IP Rating IP67
    Operating Temperature -25 C - +70 C
    Operating Voltage 10-60 V DC
    Current Consumption -
    Leakage Current <0.8 mA
    Max Current 100 mA
    Overload Trip Point >120 mA
    Surge Current -
    Short Circuit Protected Yes
    Reverse Polarity Protected NO
    Switching Frequency 1 KHz
    Response Time 0.2 ms/0.2 ms
    EMC Rating RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune No
    Weld Spatter Resistant Yes
    Description M12, 4 mm Range, DC 2-Wire, Normally Open
    Matching Cable R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
    Matching Bracket HRAB-12 (Basic) / QT-12 (Quick Release)
