  • LCS2-3040N-BRU4-AMS

    • LCS2-3040N-BRU4-AMS

    $203.84
    (No reviews yet) Write a Review
    SKU:
    LCS2-3040N-BRU4-AMS
    For PDF Spec:
    For STEP File:
    Body Length:
    63.5 mm
    Connection:
    4 Pin Quick Disconnect
    Connector:
    M12 A Coded Connector
    Current Consumption:
    <10 mA
    Diameter:
    M30
    EMC Rating:
    IEC 60947-5-2 (7.2.3.1) 1Kv
    Housing Material:
    V2A Stainless Steel
    IP Rating:
    IP68
    Leakage Current:
    <0.1 mA
    Max Current:
    <200 mA
    Mounting Style:
    Unshielded
    Operating Temperature:
    -25 C - +85 C
    Operating Voltage:
    10-30 V DC
    Output Function:
    Normally Closed
    Output Type:
    NPN
    Overload Trip Point:
    220mA
    Response Time:
    -
    Reverse Polarity Protected:
    Yes
    Sensing Face Material:
    V2A Stainless Steel
    Sensing Range:
    40 mm Range
    Shape:
    Cylindrical
    Type:
    Long Range MetalHead All Metal Sensing
    Shock Resistance:
    EC 60947-5-2 / 7.9
    Short Circuit Protected:
    Yes
    Weld Spatter Resistant:
    No
    Surge Current:
    N/A
    Switching Frequency:
    90 Hz
    Weld Field Immune:
    No
    Description:
    M30, 40 mm Range, NPN, Normally Closed
    Matching Cable:
    R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
    Matching Bracket:
    HRAB-30 (Basic) / QT-30 (Quick Release)

    Product Description

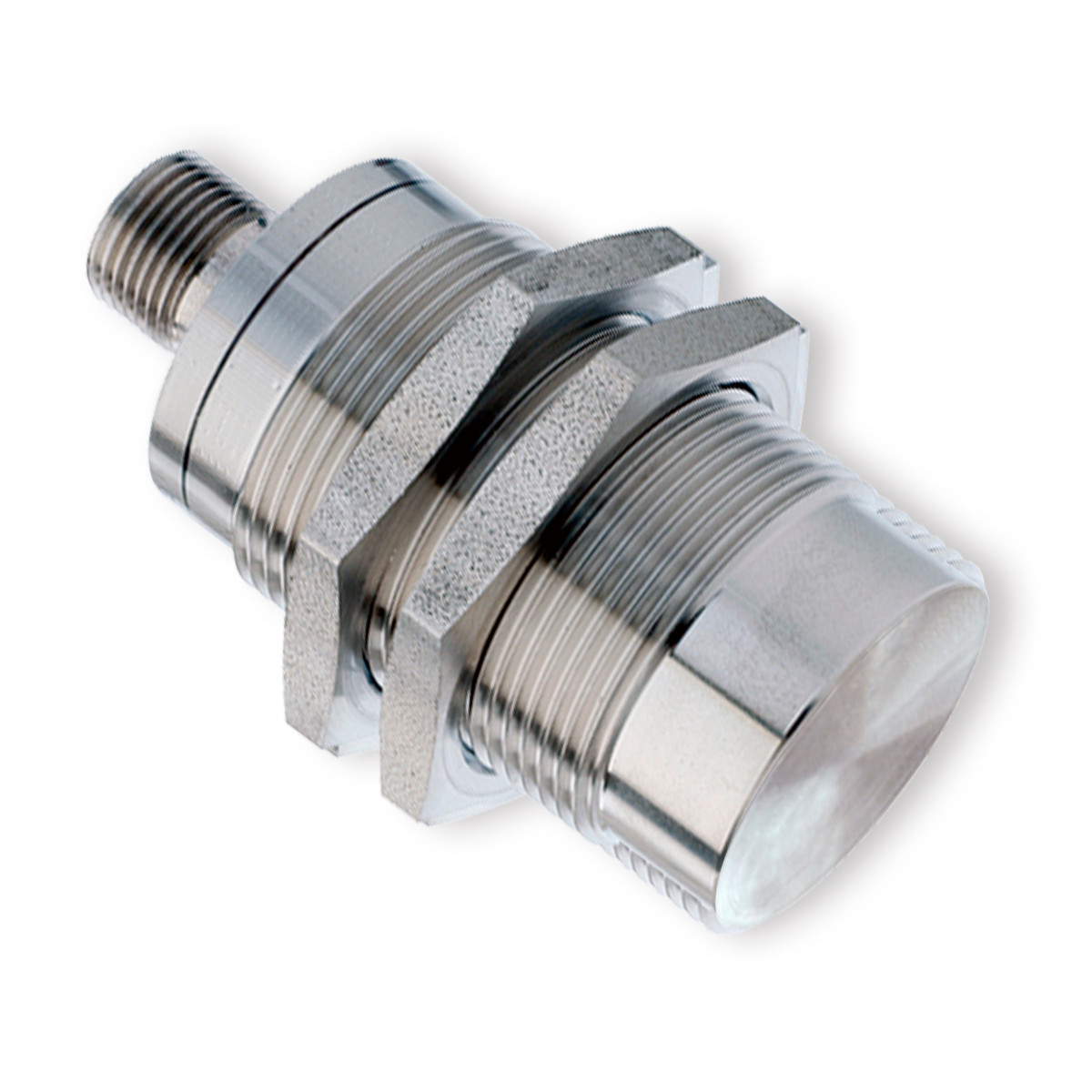

    M30x1.5 Long Range Metal Head, Unshielded 40mm range, Factor 1, NPN, Normally Closed, 4 pin M12 quick disconnect

    Product Videos

    Custom Field

    For PDF Spec
    For STEP File
    Body Length 63.5 mm
    Connection 4 Pin Quick Disconnect
    Connector M12 A Coded Connector
    Current Consumption <10 mA
    Diameter M30
    EMC Rating IEC 60947-5-2 (7.2.3.1) 1Kv
    Housing Material V2A Stainless Steel
    IP Rating IP68
    Leakage Current <0.1 mA
    Max Current <200 mA
    Mounting Style Unshielded
    Operating Temperature -25 C - +85 C
    Operating Voltage 10-30 V DC
    Output Function Normally Closed
    Output Type NPN
    Overload Trip Point 220mA
    Response Time -
    Reverse Polarity Protected Yes
    Sensing Face Material V2A Stainless Steel
    Sensing Range 40 mm Range
    Shape Cylindrical
    Type Long Range MetalHead All Metal Sensing
    Shock Resistance EC 60947-5-2 / 7.9
    Short Circuit Protected Yes
    Weld Spatter Resistant No
    Surge Current N/A
    Switching Frequency 90 Hz
    Weld Field Immune No
    Description M30, 40 mm Range, NPN, Normally Closed
    Matching Cable R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
    Matching Bracket HRAB-30 (Basic) / QT-30 (Quick Release)
