  • FCU1-D0401P-BCU3

    • FCU1-D0401P-BCU3

    $74.88
    (No reviews yet) Write a Review
    SKU:
    FCU1-D0401P-BCU3
    For PDF Spec:
    For STEP File:
    Type:
    Inductive Proximity Sensor
    Shape:
    Cylindrical
    Diameter:
    4 mm Smooth
    Sensing Range:
    1 mm Range
    Mounting Style:
    Shielded
    Output Type:
    PNP
    Output Function:
    Normally Closed
    Connection:
    3 Pin Quick Disconnect
    Connector:
    M8 Connector
    Body Length:
    40 mm
    Housing Material:
    Stainless Steel SUS303
    Sensing Face Material:
    PBT Plastic
    IP Rating:
    IP67
    Operating Temperature:
    -25 C - +70 C
    Operating Voltage:
    10-30 V DC
    Current Consumption:
    <10 mA
    Leakage Current:
    <0.01 mA
    Max Current:
    200 mA
    Overload Trip Point:
    >220 mA
    Surge Current:
    -
    Short Circuit Protected:
    Yes
    Reverse Polarity Protected:
    Yes
    Switching Frequency:
    2 KHz
    Response Time:
    0.1 ms/0.1 ms
    EMC Rating:
    RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating:
    IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune:
    No
    Weld Spatter Resistant:
    No
    Description:
    4 mm Smooth, 1 mm Range, PNP, Normally Closed
    Matching Cable:
    R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
    Adding to cart… category.add_cart_announcement

    Product Description

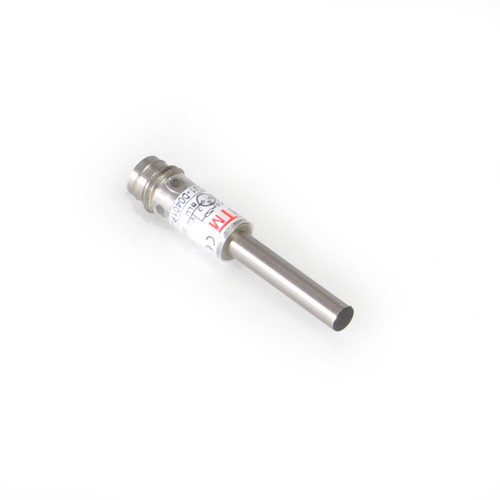

    4 mm Smooth, Inductive Proximity Sensor, Shielded, 1 mm Range, PNP, Normally Closed, M8 Connector

    Product Videos

    Custom Field

    For PDF Spec
    For STEP File
    Type Inductive Proximity Sensor
    Shape Cylindrical
    Diameter 4 mm Smooth
    Sensing Range 1 mm Range
    Mounting Style Shielded
    Output Type PNP
    Output Function Normally Closed
    Connection 3 Pin Quick Disconnect
    Connector M8 Connector
    Body Length 40 mm
    Housing Material Stainless Steel SUS303
    Sensing Face Material PBT Plastic
    IP Rating IP67
    Operating Temperature -25 C - +70 C
    Operating Voltage 10-30 V DC
    Current Consumption <10 mA
    Leakage Current <0.01 mA
    Max Current 200 mA
    Overload Trip Point >220 mA
    Surge Current -
    Short Circuit Protected Yes
    Reverse Polarity Protected Yes
    Switching Frequency 2 KHz
    Response Time 0.1 ms/0.1 ms
    EMC Rating RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune No
    Weld Spatter Resistant No
    Description 4 mm Smooth, 1 mm Range, PNP, Normally Closed
    Matching Cable R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
