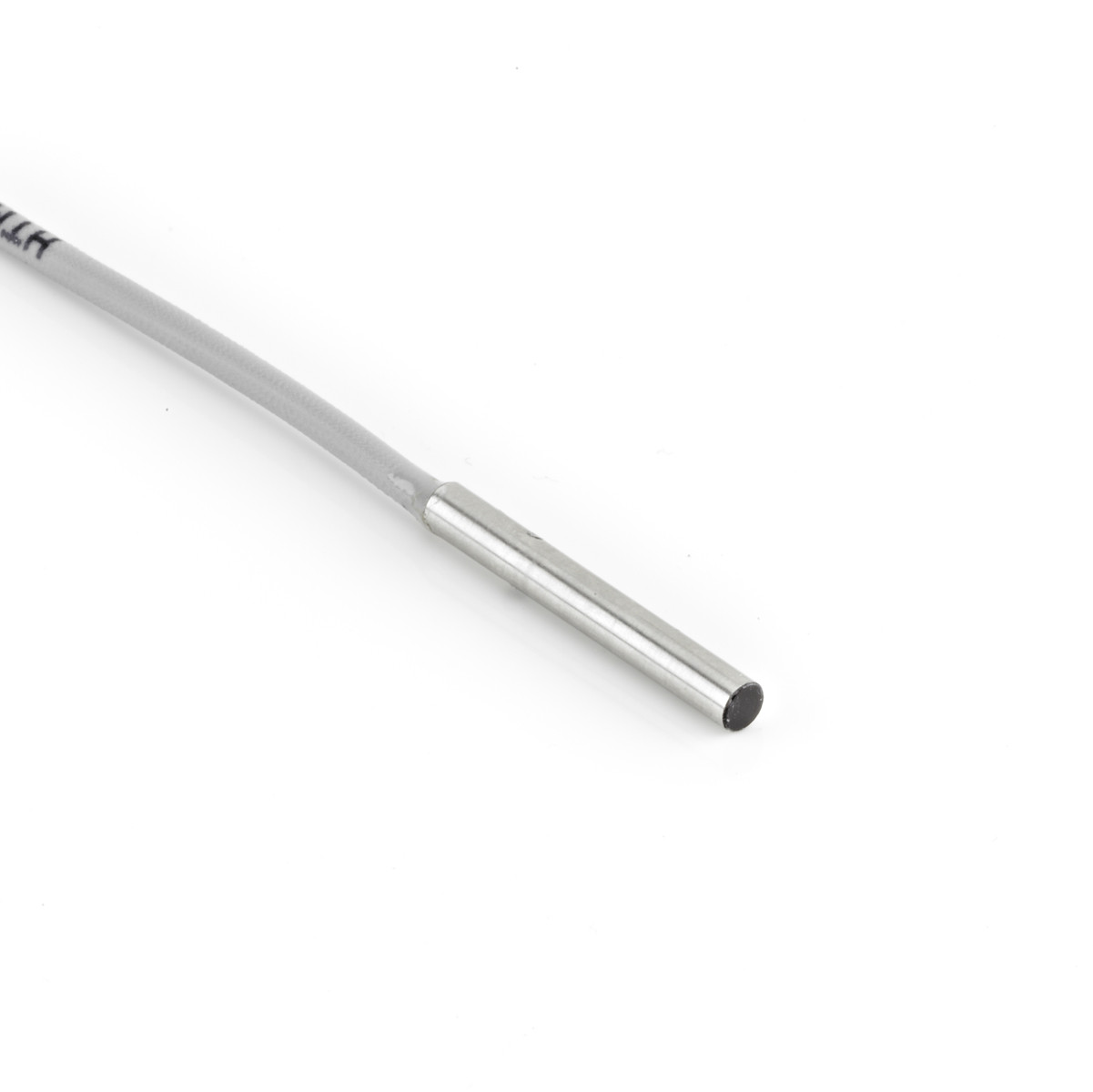

  • FCU1-D030.8P-A3U0.3/P8

    • FCU1-D030.8P-A3U0.3/P8

    $106.08
    (No reviews yet) Write a Review
    SKU:
    FCU1-D030.8P-A3U0.3/P8
    For PDF Spec:
    For STEP File:
    Type:
    Inductive Proximity Sensor
    Shape:
    Cylindrical
    Diameter:
    3 mm Smooth
    Sensing Range:
    0.8 mm Range
    Mounting Style:
    Shielded
    Output Type:
    PNP
    Output Function:
    Normally Open
    Connection:
    Pre-Leaded 3 Wire
    Connector:
    0.3 m Cable with 8 mm Smooth Pigtail Connector
    Body Length:
    25 mm
    Housing Material:
    Stainless Steel SUS303
    Sensing Face Material:
    PBT Plastic
    IP Rating:
    IP67
    Operating Temperature:
    -25 C - +70 C
    Operating Voltage:
    10-30 V DC
    Current Consumption:
    <10 mA
    Leakage Current:
    <0.01 mA
    Max Current:
    200 mA
    Overload Trip Point:
    >220 mA
    Surge Current:
    -
    Short Circuit Protected:
    Yes
    Reverse Polarity Protected:
    Yes
    Switching Frequency:
    2 KHz
    Response Time:
    0.1 ms/0.1 ms
    EMC Rating:
    RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating:
    IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune:
    No
    Weld Spatter Resistant:
    No
    Description:
    3 mm Smooth, 0.8 mm Range, PNP, Normally Open
    Matching Cable:
    C-FS3TZ-V075 (Straight Connector) / C-FA3TZ-V075 (Angled Connector)
    Adding to cart… category.add_cart_announcement

    Product Description

    3 mm Smooth, Inductive Proximity Sensor, Shielded, 0.8 mm Range, PNP, Normally Open, 0.3 m Cable, 8 mm Smooth Pigtail Connector

    Product Videos

    Custom Field

    For PDF Spec
    For STEP File
    Type Inductive Proximity Sensor
    Shape Cylindrical
    Diameter 3 mm Smooth
    Sensing Range 0.8 mm Range
    Mounting Style Shielded
    Output Type PNP
    Output Function Normally Open
    Connection Pre-Leaded 3 Wire
    Connector 0.3 m Cable with 8 mm Smooth Pigtail Connector
    Body Length 25 mm
    Housing Material Stainless Steel SUS303
    Sensing Face Material PBT Plastic
    IP Rating IP67
    Operating Temperature -25 C - +70 C
    Operating Voltage 10-30 V DC
    Current Consumption <10 mA
    Leakage Current <0.01 mA
    Max Current 200 mA
    Overload Trip Point >220 mA
    Surge Current -
    Short Circuit Protected Yes
    Reverse Polarity Protected Yes
    Switching Frequency 2 KHz
    Response Time 0.1 ms/0.1 ms
    EMC Rating RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune No
    Weld Spatter Resistant No
    Description 3 mm Smooth, 0.8 mm Range, PNP, Normally Open
    Matching Cable C-FS3TZ-V075 (Straight Connector) / C-FA3TZ-V075 (Angled Connector)
