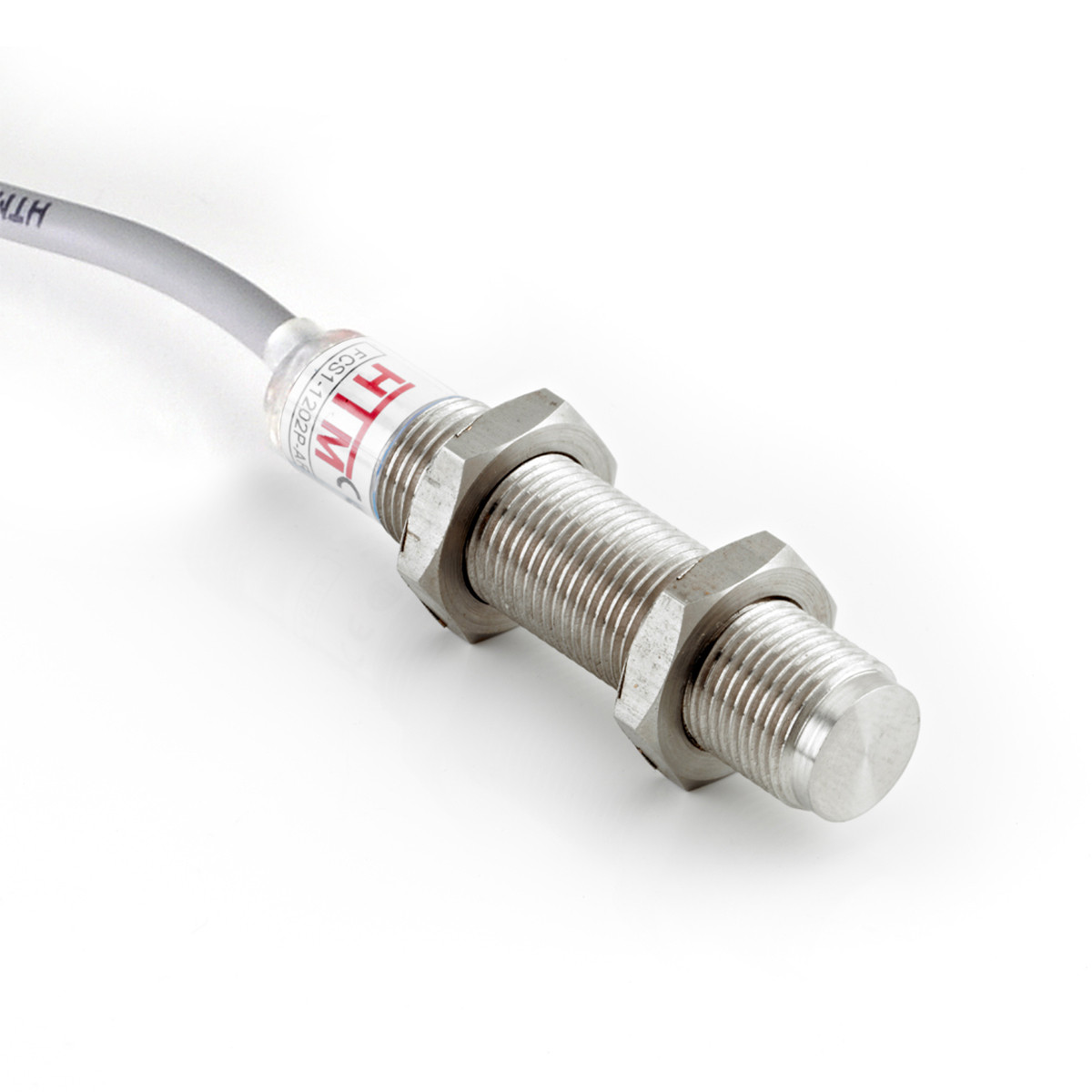

  • FCS1-1202A-A3L2

    • FCS1-1202A-A3L2

    $109.20
    (No reviews yet) Write a Review
    SKU:
    FCS1-1202A-A3L2
    For PDF Spec:
    For STEP File:
    Type:
    Inductive Metal Face Proximity Sensor
    Shape:
    Cylindrical
    Diameter:
    M12
    Sensing Range:
    2 mm Range
    Mounting Style:
    Shielded
    Output Type:
    AC
    Output Function:
    Normally Open
    Connection:
    Pre-Leaded 3 Wire
    Connector:
    2 m Cable
    Body Length:
    60 mm
    Housing Material:
    Stainless Steel SUS303
    Sensing Face Material:
    1-Piece Stainless Steel
    IP Rating:
    IP68
    Operating Temperature:
    -25 C - +70 C
    Operating Voltage:
    20-250 V AC
    Current Consumption:
    <1.8 mA
    Leakage Current:
    <1.8 mA
    Max Current:
    400 mA
    Overload Trip Point:
    -
    Surge Current:
    5 A (20 ms)
    Short Circuit Protected:
    NO
    Reverse Polarity Protected:
    NO
    Switching Frequency:
    <25 Hz
    Response Time:
    10 ms/10 ms
    EMC Rating:
    RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating:
    IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune:
    No
    Weld Spatter Resistant:
    No
    Description:
    M12, 2 mm Range, AC, Normally Open
    Matching Bracket:
    HRAB-12 (Basic) / QT-12 (Quick Release)
    Adding to cart… category.add_cart_announcement

    Product Description

    M12, Inductive Metal Face Proximity Sensor, Shielded, 2 mm Range, AC, Normally Open, 2 m Cable

    Product Videos

    Custom Field

    For PDF Spec
    For STEP File
    Type Inductive Metal Face Proximity Sensor
    Shape Cylindrical
    Diameter M12
    Sensing Range 2 mm Range
    Mounting Style Shielded
    Output Type AC
    Output Function Normally Open
    Connection Pre-Leaded 3 Wire
    Connector 2 m Cable
    Body Length 60 mm
    Housing Material Stainless Steel SUS303
    Sensing Face Material 1-Piece Stainless Steel
    IP Rating IP68
    Operating Temperature -25 C - +70 C
    Operating Voltage 20-250 V AC
    Current Consumption <1.8 mA
    Leakage Current <1.8 mA
    Max Current 400 mA
    Overload Trip Point -
    Surge Current 5 A (20 ms)
    Short Circuit Protected NO
    Reverse Polarity Protected NO
    Switching Frequency <25 Hz
    Response Time 10 ms/10 ms
    EMC Rating RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune No
    Weld Spatter Resistant No
    Description M12, 2 mm Range, AC, Normally Open
    Matching Bracket HRAB-12 (Basic) / QT-12 (Quick Release)
