Distance Sensors

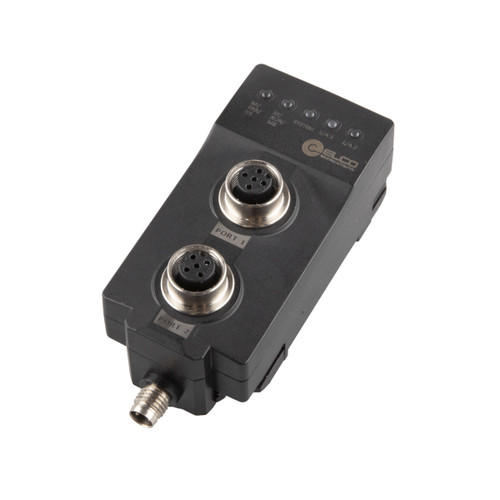

M1-EC6

Distance Sensors, M1-EC6-Series, Gatewaymodul to Fieldbus, use with OSC1-Series ( up to 8 x OSC1-Controller can be connected), EtherCAT, 12 - 24 V DC, -25 - 55 C, IP50, cascadeable with OSC1 controller

OSC1-TC2B6-Q8/485

Distance Sensors, OSC1-Series, Laser Array Sensor Controller, use with OSMT60-Series, 12 - 24 V DC, 2 x Push-Pull PNP/NPN, RS-485, -20 - 50 C, IP50, 2 m cable , cascadeable with gateway M1-EC6 modul

OSC1-TC2BLIU6-Q8

Distance Sensors, OSC1-Series, Laser Array Sensor Controller, use with OSMT60-Series, 12 - 24 V DC, 2 x Push-Pull PNP/NPN,Analog 4 - 20 mA or 0 - 10V DC, -20 - 50 C, IP50, 2 m cable, cascadeable with gateway M1-EC6 modul

OSC1-UC2B6-Q8/485

Distance Sensors, OSC1-Series, Laser Array Sensor Controller, use with OSMT60-Series, 12 - 24 V DC, 2 x Push-Pull PNP/NPN, RS-485, -20 - 50 C, IP50, 2 m cable , cascadeable with another OSC1 or Gateway M1-EC6 modul

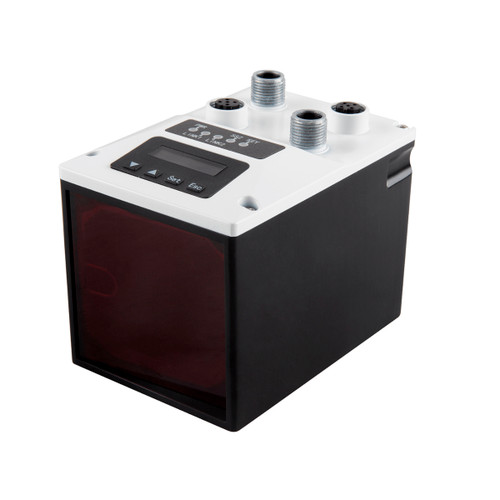

OSM300-KL20S2A422IOQ12

Distance Sensors, OSM300-Series, Diffused Laser Distance Sensors, Red laser, Operating range 0.15 - 20 m, Repeatability 1 mm, IO-Link, Analog, 2 x Push-Pull, RS422, 10 - 30 V DC, -10 - 50 C, IP65, M12 connector

OSM300-RPL100EIPSIQ12

Distance Sensors, OSM300-Series, Retro-reflective Laser Distance Sensors, Red laser, Operating range 0.15 - 100 m, Repeatability 2 mm, EtherNet/IP, SSI, 18 - 30V DC, -20 - 55 C, IP67, M12 connector

OSM300-RPL100PNSIQ12

Distance Sensors, OSM300-Series, Retro-reflective Laser Distance Sensors, Red laser, Operating range 0.15 - 100 m, Repeatability 2 mm, PROFINET, SSI, 18 - 30V DC, -20 - 55 C, IP67, M12 connector

OSM40-KL1000CB6/485

Distance Sensors, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110 - 1000 mm, Resolution 1 mm, NPN or PNP, RS-485, 10 - 30 V DC, -10 - 50 C, IP67, 2 m cable

OSM40-KL1000CB6Q12.1/485

Distance Sensors, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110 - 1000 mm, Resolution 1 mm, NPN or PNP, RS-485, 10 - 30 V DC, -10 - 50 C, IP67, M12 5-pin connector

OSM40-KL1000CB6Q12.1/IO

Distance Sensors, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110 - 1000 mm, Resolution 1 mm, NPN or PNP, IO-Link, 10 - 30 V DC, -10 - 50 C, IP67, M12 5-pin connector

OSM40-KL1000CBLIU6

Distance Sensors, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110 - 1000 mm, Resolution 1 mm, NPN or PNP, Analog 4 - 20 mA or 0 - 5 V DC or 0 - 10V DC, 10 - 30 V DC, -10 - 50 C, IP67, 2 m cable

OSM40-KL1000CBLIU6Q12.1

Distance Sensors, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110 - 1000 mm, Resolution 1 mm, NPN or PNP, Analog 4 - 20 mA or 0 - 5 V DC or 0 - 10V DC, 10 - 30 V DC, -10 - 50 C, IP67, M12 5-pin connector
