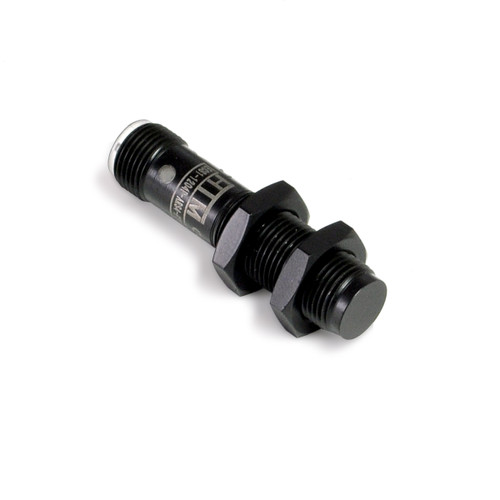

  • ECS1-1204P-ARU4-PTFE-120C-WFI-TC4

    • ECS1-1204P-ARU4-PTFE-120C-WFI-TC4

    $248.56
    (No reviews yet) Write a Review
    SKU:
    ECS1-1204P-ARU4-PTFE-120C-WFI-TC4
    For PDF Spec:
    <
    For STEP File:
    Type:
    Automotive Titan Sensors
    Shape:
    Cylindrical
    Diameter:
    M12
    Sensing Range:
    4 mm Range
    Mounting Style:
    Shielded
    Output Type:
    PNP
    Output Function:
    Normally Open
    Connection:
    4 Pin Quick Disconnect
    Connector:
    M12 A Coded Connector
    Body Length:
    68 mm
    Housing Material:
    Stainless Steel
    Sensing Face Material:
    1-Piece Stainless Steel
    IP Rating:
    IP67
    Operating Temperature:
    -25 C - +120 C
    Operating Voltage:
    10-30 V DC
    Current Consumption:
    åÂ?10mA
    Leakage Current:
    åÂ?0.01mA
    Max Current:
    200mA
    Overload Trip Point:
    >220mA
    Surge Current:
    -
    Short Circuit Protected:
    Yes
    Reverse Polarity Protected:
    Yes
    Switching Frequency:
    5 Hz
    Response Time:
    200 ms / 200ms
    EMC Rating:
    RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating:
    IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune:
    Yes
    Weld Spatter Resistant:
    Yes
    Description:
    M12, 4 mm Range, PNP, Normally Open
    Matching Cable:
    R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
    Matching Bracket:
    HRAB-12 (Basic) / QT-12 (Quick Release)
    Adding to cart… category.add_cart_announcement

    Product Description

    M12, Automotive Titan Sensors, Shielded, 4 mm Range, PNP, Normally Open, M12 A Coded Connector

    Product Videos

    Custom Field

    For PDF Spec <
    For STEP File
    Type Automotive Titan Sensors
    Shape Cylindrical
    Diameter M12
    Sensing Range 4 mm Range
    Mounting Style Shielded
    Output Type PNP
    Output Function Normally Open
    Connection 4 Pin Quick Disconnect
    Connector M12 A Coded Connector
    Body Length 68 mm
    Housing Material Stainless Steel
    Sensing Face Material 1-Piece Stainless Steel
    IP Rating IP67
    Operating Temperature -25 C - +120 C
    Operating Voltage 10-30 V DC
    Current Consumption åÂ?10mA
    Leakage Current åÂ?0.01mA
    Max Current 200mA
    Overload Trip Point >220mA
    Surge Current -
    Short Circuit Protected Yes
    Reverse Polarity Protected Yes
    Switching Frequency 5 Hz
    Response Time 200 ms / 200ms
    EMC Rating RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune Yes
    Weld Spatter Resistant Yes
    Description M12, 4 mm Range, PNP, Normally Open
    Matching Cable R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector)
    Matching Bracket HRAB-12 (Basic) / QT-12 (Quick Release)
