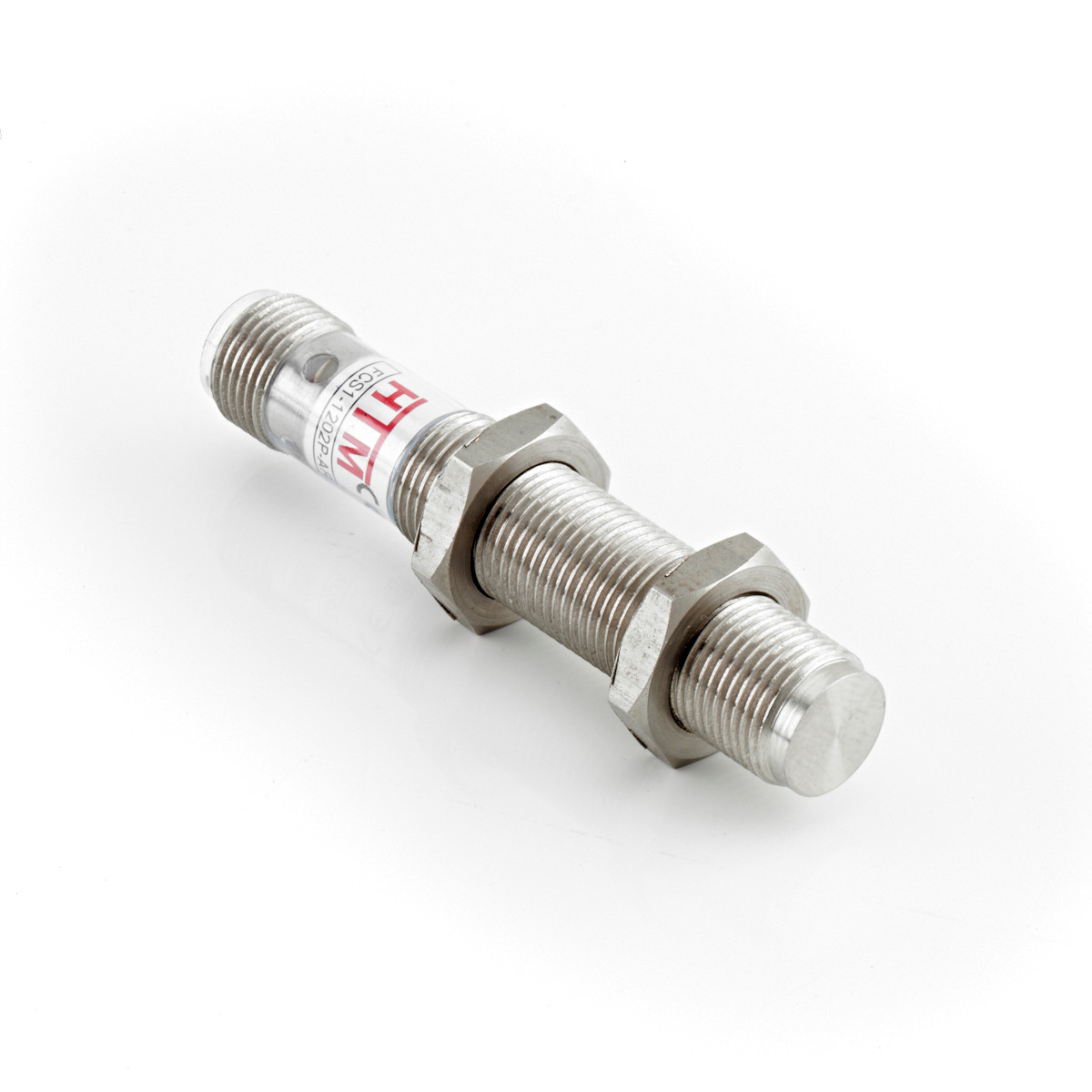

  • ECS1-1204A-AUL3-100C-TC4

    • ECS1-1204A-AUL3-100C-TC4

    $250.64
    (No reviews yet) Write a Review
    SKU:
    ECS1-1204A-AUL3-100C-TC4
    For PDF Spec:
    For STEP File:
    Type:
    TitanProx - 1-piece Titanium
    Shape:
    Cylindrical
    Diameter:
    M12
    Sensing Range:
    4 mm Range
    Mounting Style:
    Shielded
    Output Type:
    AC
    Output Function:
    Normally Open
    Connection:
    3 Pin Quick Disconnect
    Connector:
    1/2-20UNF Connector
    Body Length:
    71 mm
    Housing Material:
    Titanium
    Sensing Face Material:
    1-Piece Titanium
    IP Rating:
    IP67
    Operating Temperature:
    -25 C - +100 C
    Operating Voltage:
    20-240 V AC
    Current Consumption:
    <1.8mA
    Leakage Current:
    <1.8mA
    Max Current:
    400mA
    Overload Trip Point:
    -
    Surge Current:
    5A (20mS)
    Short Circuit Protected:
    No
    Reverse Polarity Protected:
    No
    Switching Frequency:
    <25Hz
    Response Time:
    10 ms/10 ms
    EMC Rating:
    RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating:
    IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune:
    No
    Weld Spatter Resistant:
    No
    Description:
    M12, 4 mm Range, AC, Normally Open
    Matching Cable:
    U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector)
    Matching Bracket:
    HRAB-12 (Basic) / QT-12 (Quick Release)
    Adding to cart… category.add_cart_announcement

    Product Description

    M12, TitanProx - 1-piece Titanium, Shielded, 4 mm Range, AC, Normally Open, 1/2-20UNF Connector

    Product Videos

    Custom Field

    For PDF Spec
    For STEP File
    Type TitanProx - 1-piece Titanium
    Shape Cylindrical
    Diameter M12
    Sensing Range 4 mm Range
    Mounting Style Shielded
    Output Type AC
    Output Function Normally Open
    Connection 3 Pin Quick Disconnect
    Connector 1/2-20UNF Connector
    Body Length 71 mm
    Housing Material Titanium
    Sensing Face Material 1-Piece Titanium
    IP Rating IP67
    Operating Temperature -25 C - +100 C
    Operating Voltage 20-240 V AC
    Current Consumption <1.8mA
    Leakage Current <1.8mA
    Max Current 400mA
    Overload Trip Point -
    Surge Current 5A (20mS)
    Short Circuit Protected No
    Reverse Polarity Protected No
    Switching Frequency <25Hz
    Response Time 10 ms/10 ms
    EMC Rating RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
    Shock/Vibration Rating IEC 60497-5-2 Part 7.4.1&7.4.2
    Weld Field Immune No
    Weld Spatter Resistant No
    Description M12, 4 mm Range, AC, Normally Open
    Matching Cable U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector)
    Matching Bracket HRAB-12 (Basic) / QT-12 (Quick Release)
